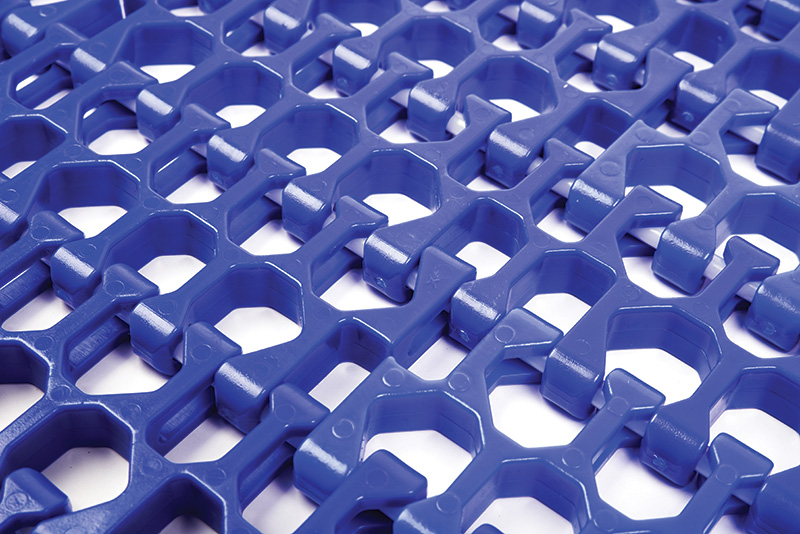

5000 Series Edge Drive

Radius and Straight Running

Product Specification

Pitch

50.8mm

Link Thickness

15mm

Open Area

55.58%

Drive Method

Drive method- Edge driven

Surface Area

Flush Grid

Flights

12mm Side & Center

Travel

Bi-Directional

Link Layout

Bi-Directional

Belt Data

Belt Material

Temperature Range

Weight M2

Minimum Inside Radius

Acetal with Acetal Rods

-40°C to 93.6°C

8kg

1.9 x belt width

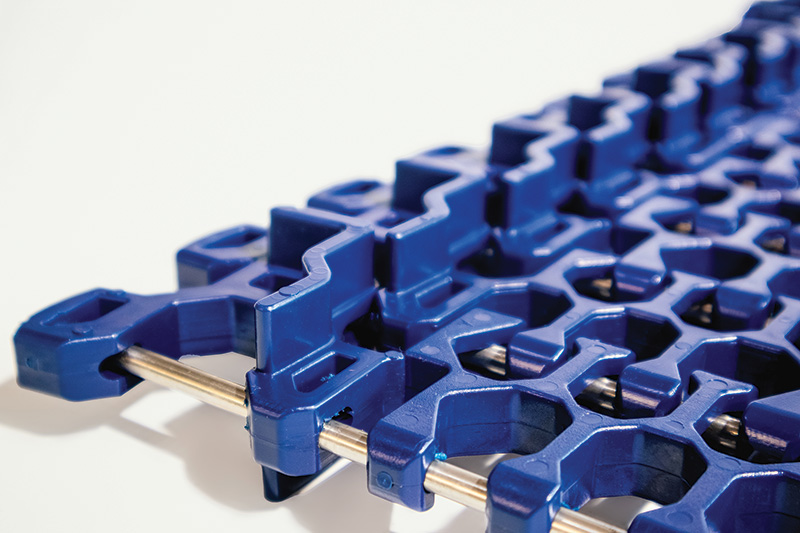

Rods

Diameter

Rod Retention

Stainless Steel

4.9mm Ø

Offset Hole

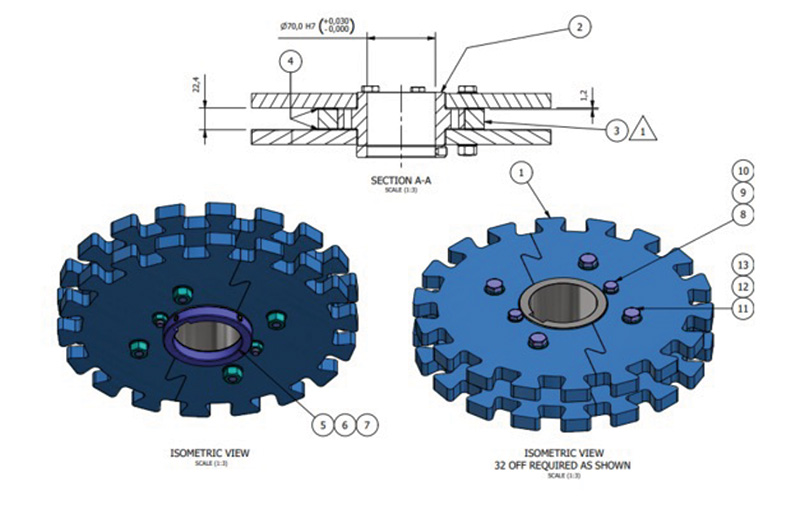

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

8

25mm or 30mm

20.3mm

108mm

How to calculate the nearest available width

Smallest available width – 200mm
Increments – 25mm
Example – 200mm +25 = 225mm
Smallest width with inner lane divider
Min width – 300mm
Increments – 25mm

Below table is purely a guide and is spaced +- 100mm apart to help with machine build

Weights and Sprockets

Width (mm)

Width (Inches)

Weight per mm

Total weight per width -kg

Total weight in LB

171

5

0.0080

1.016

2.240

271

10

0.0080

2.032

4.480

371

15

0.0080

3.048

6.720

496

20

0.0080

4.064

8.959

621

25

0.0080

5.080

11.199

746

30

0.0080

6.096

13.439

871

35

0.0080

7.112

15.679

996

40

0.0080

8.128

17.919

1121

45

0.0080

9.144

20.159

1246

50

0.0080

10.160

22.399
