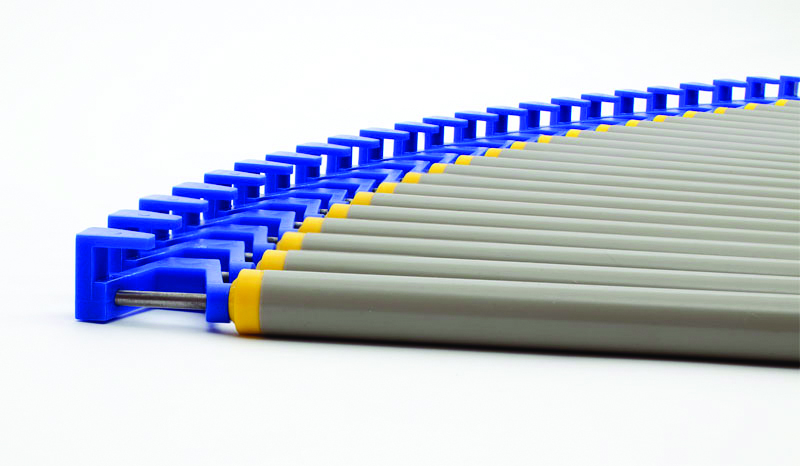

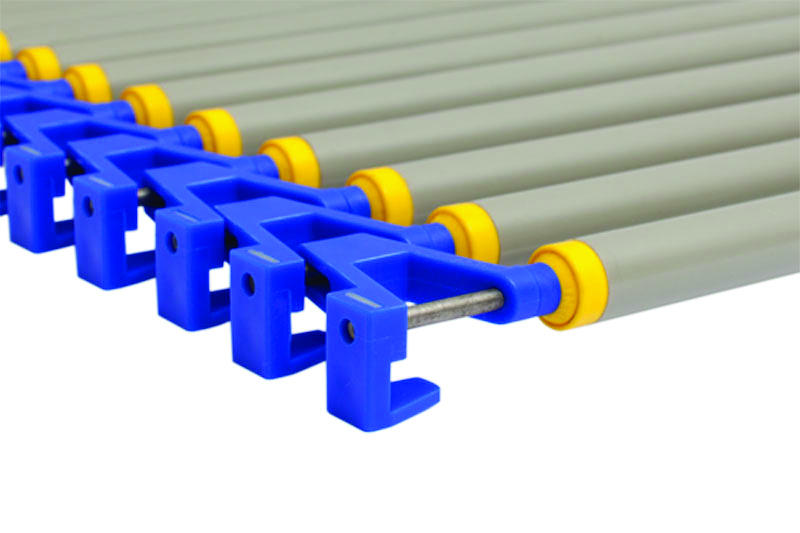

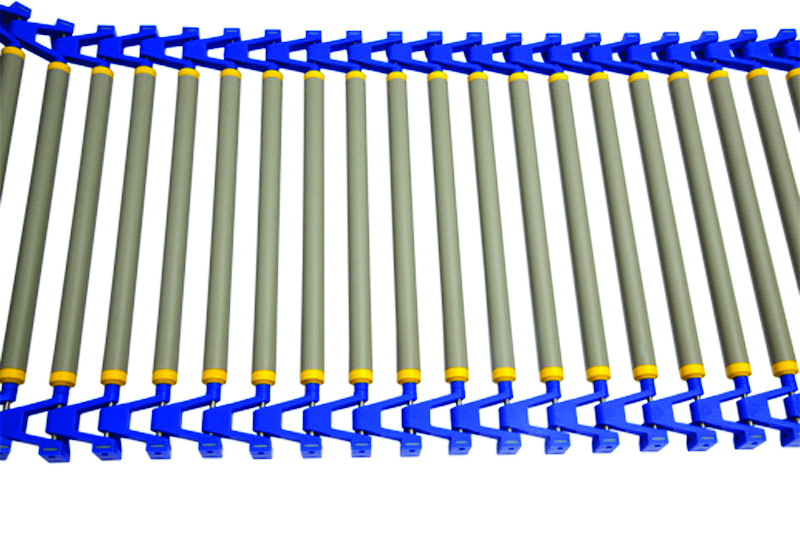

38.1mm Pitch Accumulation Belt With Gravity Rollers
Product Specification | |
Pitch | 38.1mm |
Link Thickness | 12mm – Roller 20mm Ø |
Drive Method | Hinge Driven |
Surface Area | Roller Top |
Travel | Bi-Directional |
Hold Down Tabs | Available |
Bar Links | Available |
Link Layout | Various Lengths Available |
Belt Data | ||||
Belt Material Outer Links | Belt Material Rollers | Temperature Range | Weight M2 | Minimum Inside Radius |
Acetal or Polypropylene | Polyvinylchloride | -40°C to 93.6°C | 8.65kg | 1.8 x belt width |
Rods | Diameter | Rod Retention |
Stainless Steel | 5mm Ø | Retaining Clip |
Sprockets | ||||
Material | Number of teeth | Bore with keyway | Hub width | Hub diameter |

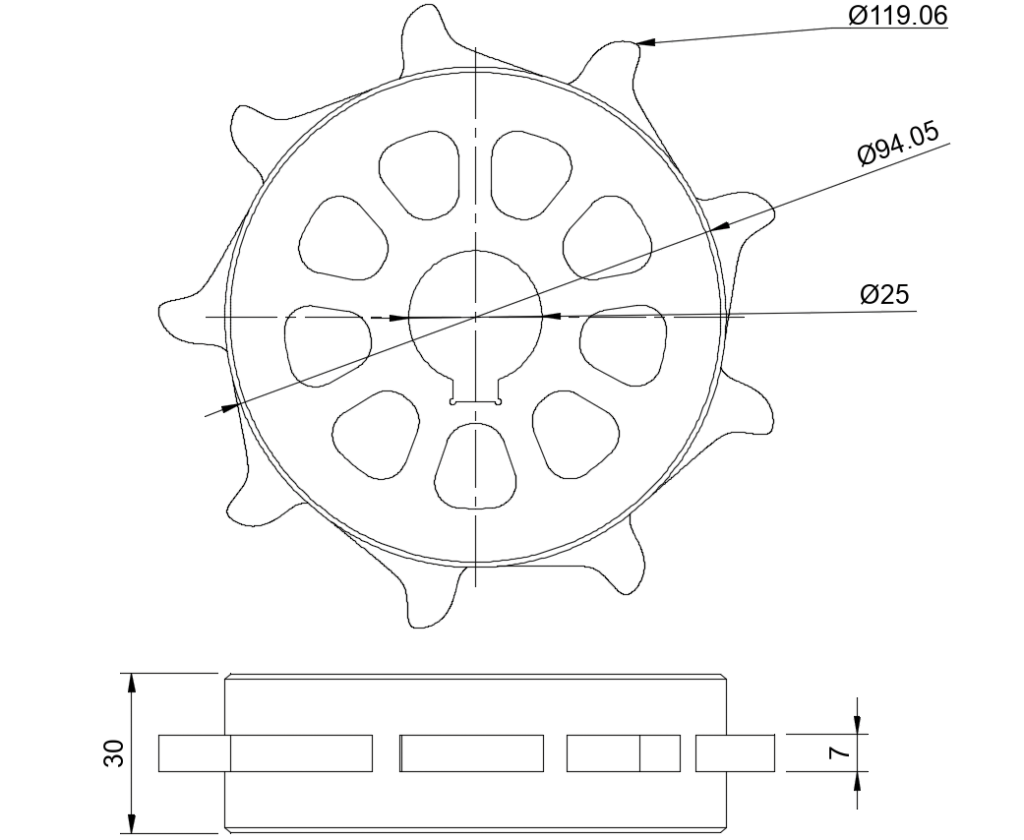

Glass Filled Nylon | 9 | 25mm or 30mm | 30mm | 94mm |

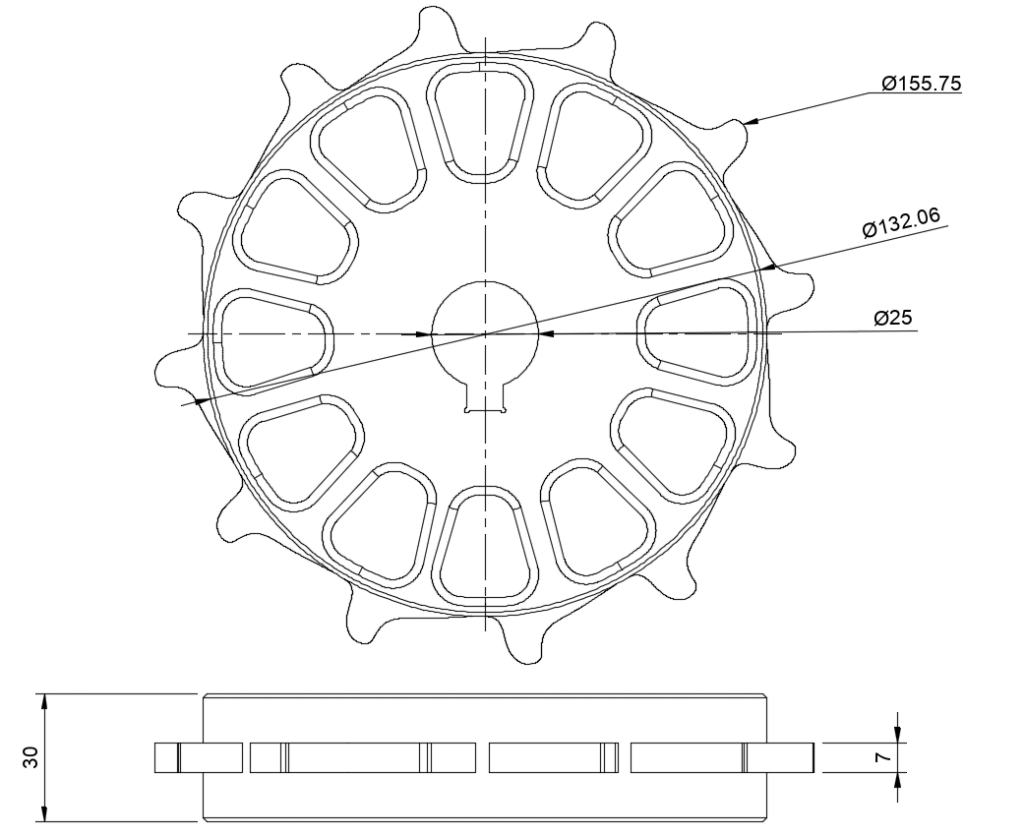

Nylon | 12 | 30mm | 30mm | 132.1mm |
How to calculate the nearest available width
Width dependant on length of gravity roller.
