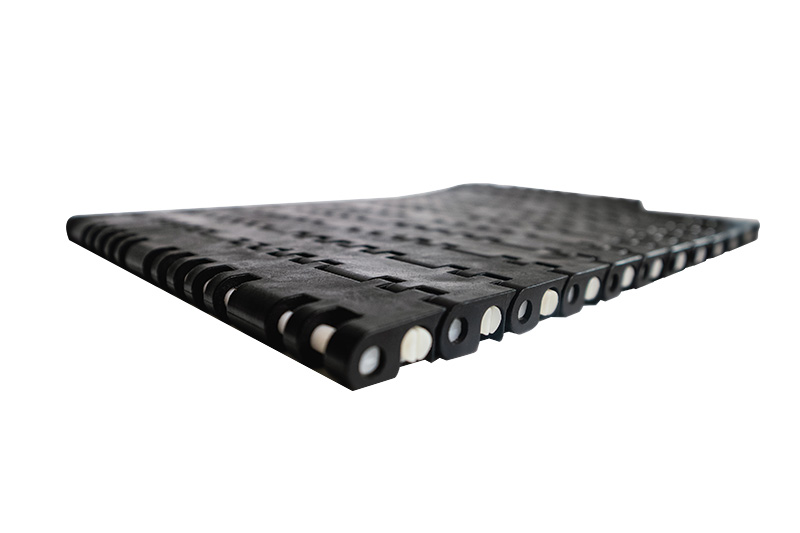

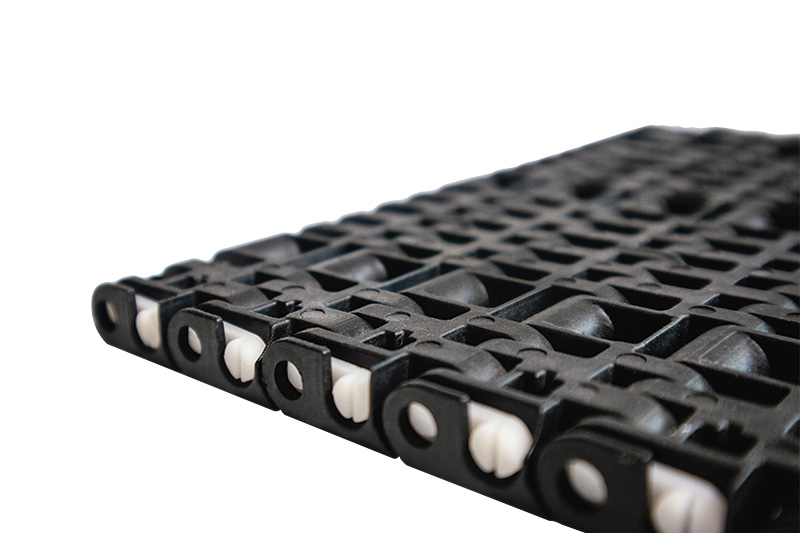

1inch Matt Top

Product Specification

Pitch

25.4mm

Link Thickness

12.7mm

Open Area

0%

Drive Method

Centre Driven

Surface Area

Flat top

Hold Down Tabs

No

Back Pressure Rollers

No

Link Layout

Bricklayed

Pozitrack

Optional

Belt Data

Belt Material

Temperature Range

Weight M2

Minimum Inside Radius

Acetal

-40°C to 93.6°C

7.4 kg

N/A

Glass filled Nylon

Up to 165°C

7.4 kg

N/A

Rods

Diameter

Rod Retention

Acetal/Glass Filled Nylon

5mm

Hinged clips

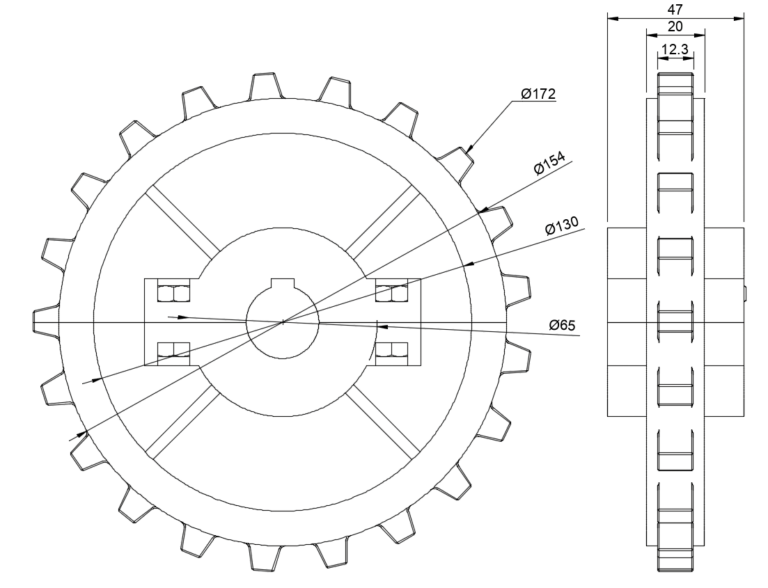

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

21

Pilot Bore

27mm

154mm

How to calculate the nearest available width

Smallest available width – 127mm
Increments – 12mm
Example – 127mm + 12mm = 139mm

Below table is purely a guide and is spaced +- 100mm apart to help with machine build

Weights and Sprockets

Width (mm)

Width (Inches)

Weight per mm

Total weight per width -kg

Total weight in LB

Min drive Sprockets per width of belt

Carryway

127

5

0.0074

0.940

2.072

2

2

247

10

0.0074

1.880

4.144

2

2

319

15

0.0074

2.819

6.216

5

2

511

20

0.0074

3.759

8.288

5

2

631

25

0.0074

4.699

10.359

5

3

763

30

0.0074

5.639

12.431

7

4

883

35

0.0074

6.579

14.503

7

4

1015

40

0.0074

7.518

16.575

8

4

1135

45

0.0074

8.458

18.647

10

6

1267

50

0.0074

9.398

20.719

11

6
