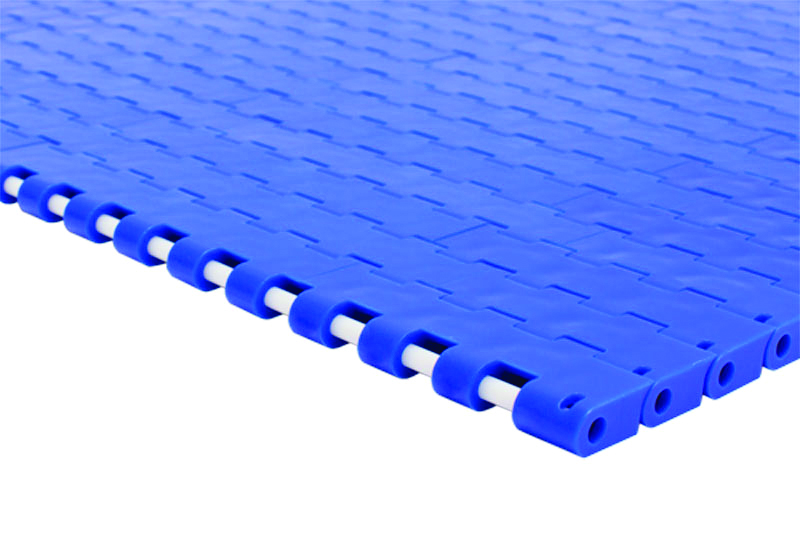

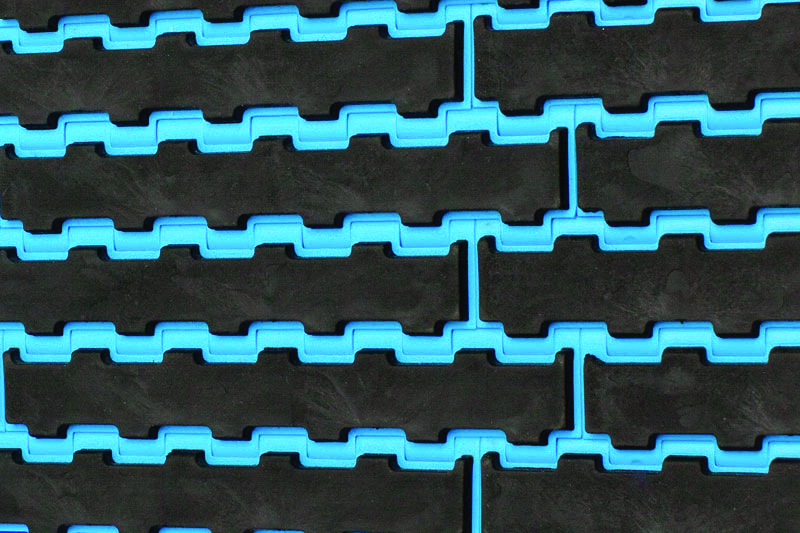

25.4mm Pitch Flat Top Belt

Straight Running

Product Specification

Pitch

25.4mm

Link Thickness

12.7mm

Open Area

0%

Drive Method

Centre Driven

Surface Area

Flat Top

Travel

Directional

Link Layout

Bricklayed

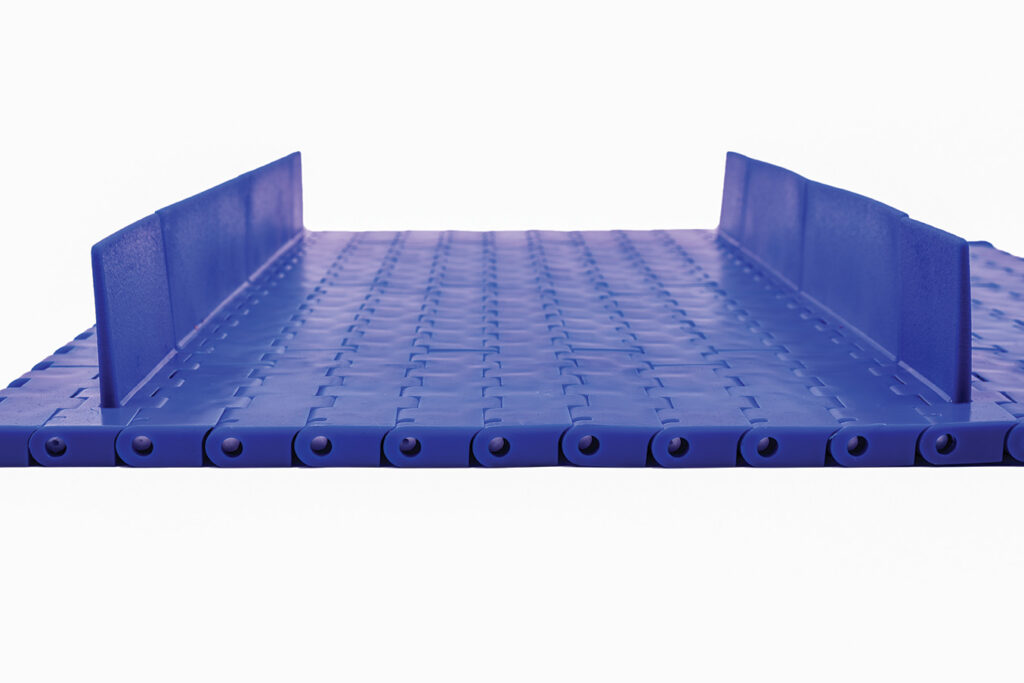

Flights

50mm

Belt Data

Belt Material

Temperature Range

Weight M2

Acetal with Acetal Rods

-40°C to 93.6°C

7.4kg

Acetal with Polypropylene Rods

5°C to 105°C

7.3kg

Polypropylene with Acetal Rods

5°C to 105°C

6.85kg

Polypropylene with Polypropylene Rods

5°C to 105°C

6.8kg

Rods

Diameter

Rod Retention

Polypropylene

5.9mm Ø

Offset Hole

Acetal

5.9mm Ø

Offset Hole

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

16

25mm and 30mm

50mm

115mm

How to calculate the nearest available width

Smallest available width – 128mm
Increments – 25mm
Example – 128mm + 25mm = 153mm

Below table is purely a guide and is spaced +- 100mm apart to help with machine build

Weights and Sprockets

Width (mm)

Width (Inches)

Weight per mm

Total weight per width -kg

Total weight in LB

Min drive Sprockets per width of belt

Carryway

128

5

0.0074

0.933

2.058

2

2

253

10

0.0074

1.867

4.116

3

2

378

15

0.0074

2.800

6.174

5

3

503

20

0.0074

3.734

8.232

5

4

628

25

0.0074

4.667

10.289

7

4

753

30

0.0074

5.601

12.347

9

5

878

35

0.0074

6.534

14.405

9

6

1003

40

0.0074

7.468

16.463

11

7

1128

45

0.0074

8.401

18.521

12

7

1278

50

0.0074

9.335

20.579

14

9
