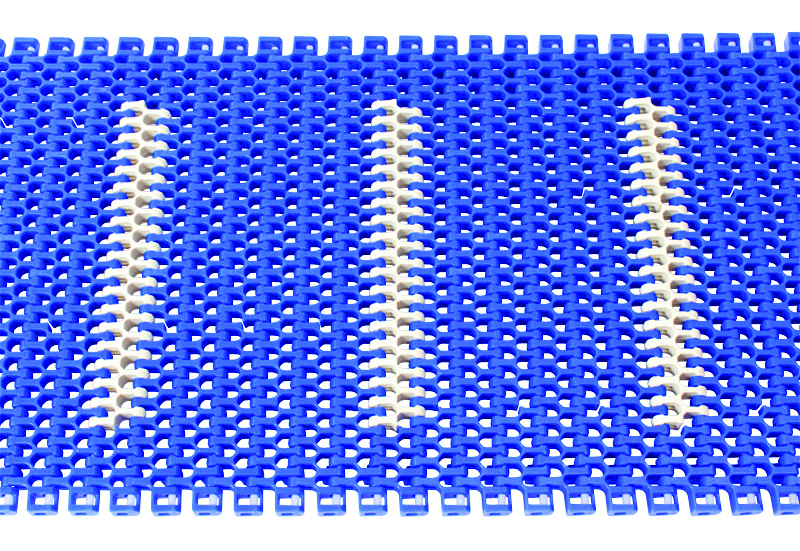

25.4mm Pitch Belt 47.5% Open Area

Radius and Straight Running

Product Specification

Pitch

25.4mm

Link Thickness

13mm

Open Area

47.5%

Drive Method

Hinge Driven

Surface Area

Flush Grid

Travel

Bi-Directional

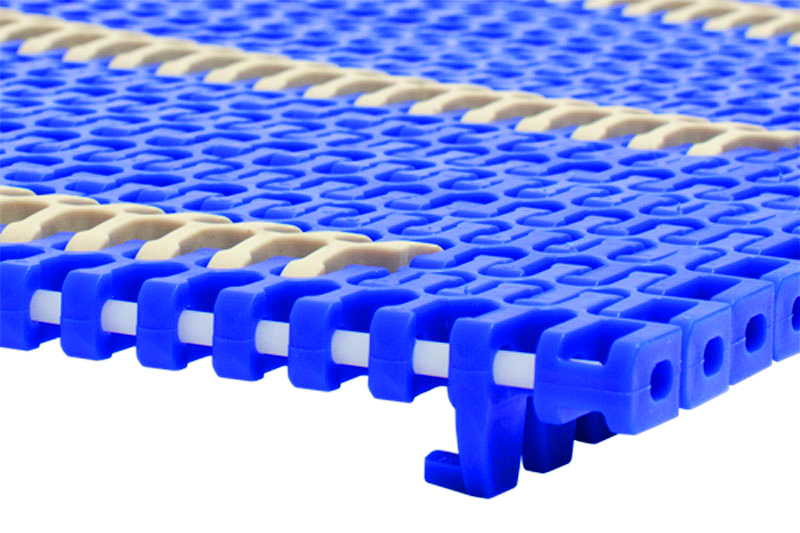

Hold Down Tabs

Available

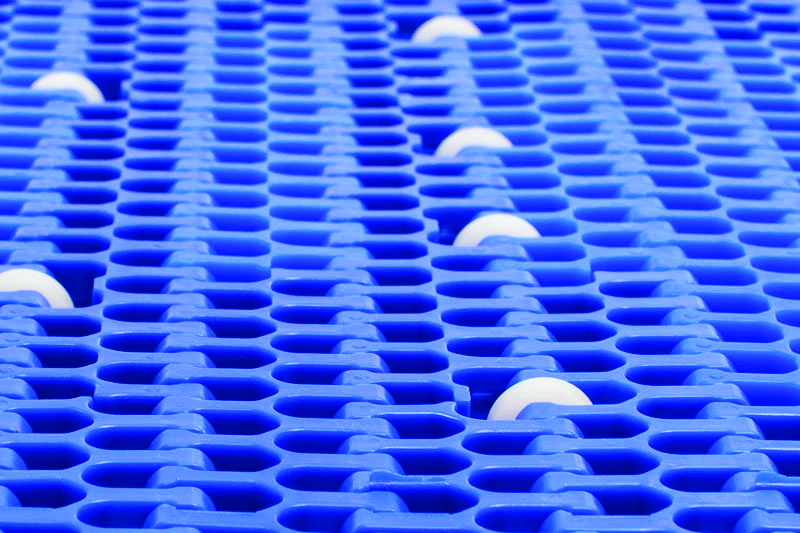

Back Pressure Rollers

Available

Link Layout

Bricklayed

Belt Data

Belt Material

Temperature Range

Weight M2

Minimum Inside Radius

Acetal with Acetal Rods

-40°C to 93.6°C

7.4kg

2.2 x belt width

Acetal with Polypropylene Rods

5°C to 93.6°C

7.4kg

2.2 x belt width

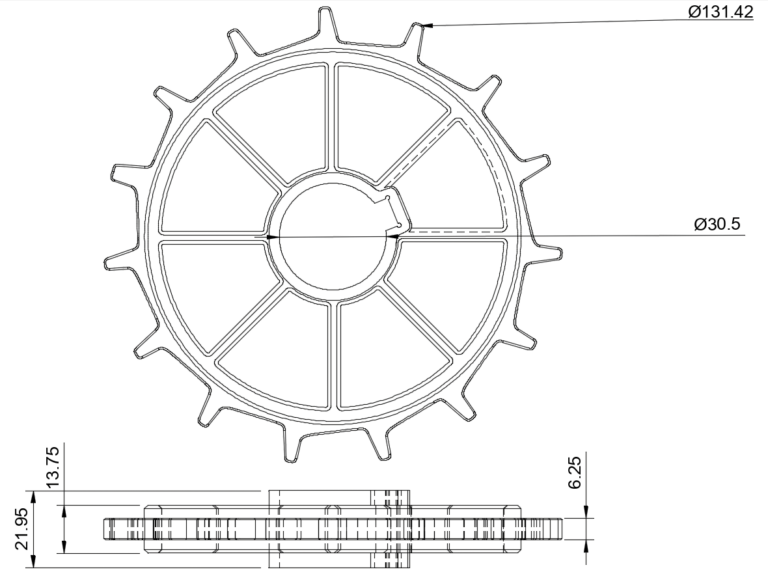

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

16

25mm or 30mm

21.8mm

115mm

Rods

Diameter

Rod Retention

Polypropylene

4.9mm Ø

Offset Hole

Acetal

4.9mm Ø

Offset Hole

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

16

25mm or 30mm

21.8mm

115mm

How to calculate the nearest available width

Smallest width available – 76mm
Increments -13mm (one link)
Example – 76mm + 13 + 13 +13 = 115mm

Below table is purely a guide and is spaced +- 100mm apart to help with machine build

Weights and Sprockets

Width (mm)

Width (Inches)

Weight per mm

Total weight per width -kg

Total weight in LB

Min drive Sprockets per width of belt

Carryway

128

5

0.0074

0.940

2.072

2

2

245

10

0.0074

1.880

4.144

2

2

375

15

0.0074

2.819

6.216

5

2

505

20

0.0074

3.759

8.288

5

2

635

25

0.0074

4.699

10.359

5

3

765

30

0.0074

5.639

12.431

7

4

882

35

0.0074

6.579

14.503

7

4

1012

40

0.0074

7.518

16.575

8

4

1142

45

0.0074

8.458

18.647

10

6

1272

50

0.0074

9.398

20.719

11

6
