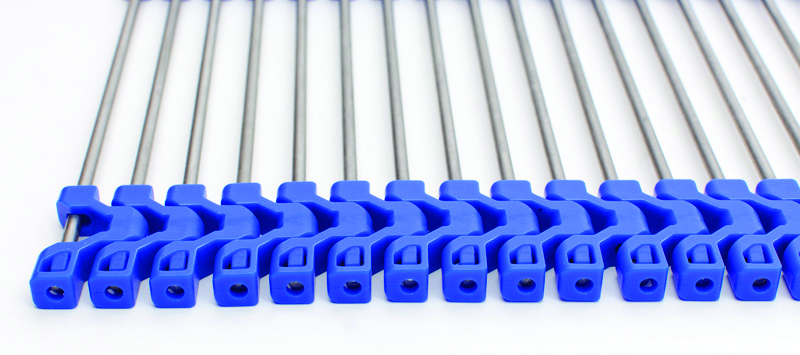

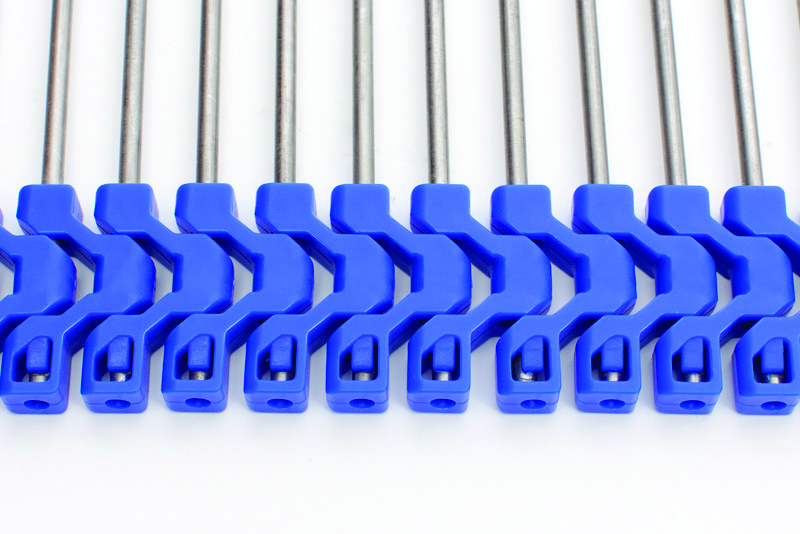

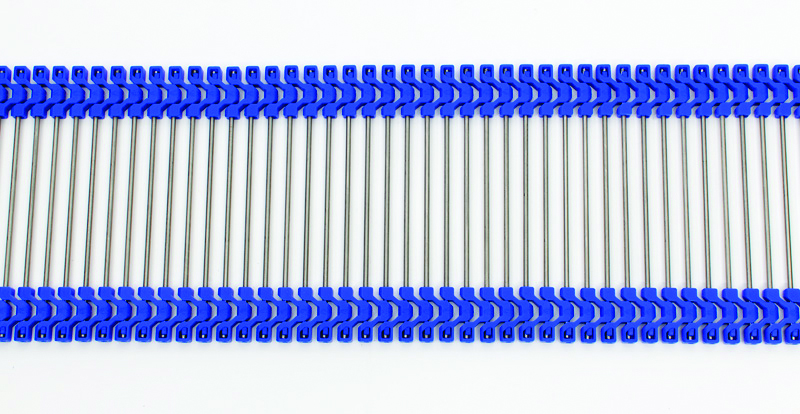

19mm Pitch Ladder Belt With Stainless Steel Rods

Product Specification

Pitch

19mm

Link Thickness

14.3mm

Drive Method

Hinge Driven

Surface Area

Flat Top

Travel

Directional

Belt Data

Belt Material

Temperature Range °C

Belt Weight M2

Minimum Inside Radius

Acetal

-40°C to 93.6°C

8.6kg

2.2 to 2.5 x Belt Width

Polypropylene

5°C to 105°C

8.6kg

2.2 to 2.5 x Belt Width

Rods

Diameter

Rod Retention

Stainless Steel

5mm Ø

Self Twisting Snap Lock

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

16

25mm or 30mm

30mm

82.19mm

Weights and Sprockets

Width (mm)

Width (Inches)

Weight per mm

Total weight per width -kg

Total weight in LB

127

5

0.0086

1.092

2.408

254

10

0.0086

2.184

4.816

381

15

0.0086

3.277

7.224

508

20

0.0086

4.369

9.631

635

25

0.0086

5.461

12.039

762

30

0.0086

6.553

14.447

889

35

0.0086

7.645

16.855

1016

40

0.0086

8.738

19.263

1143

45

0.0086

9.830

21.671

1270

50

0.0086

10.922

24.079
