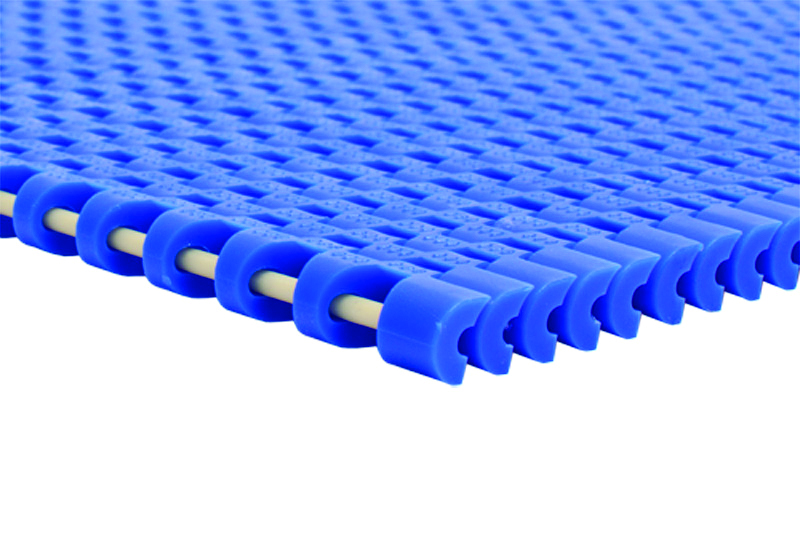

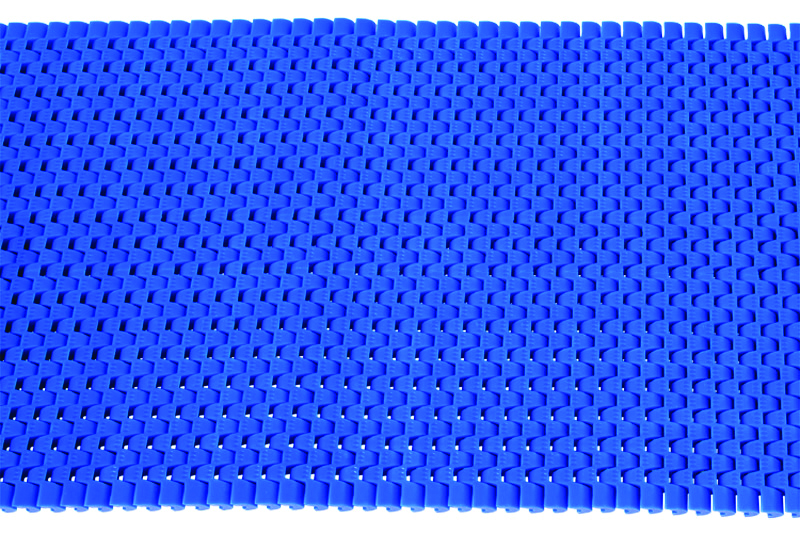

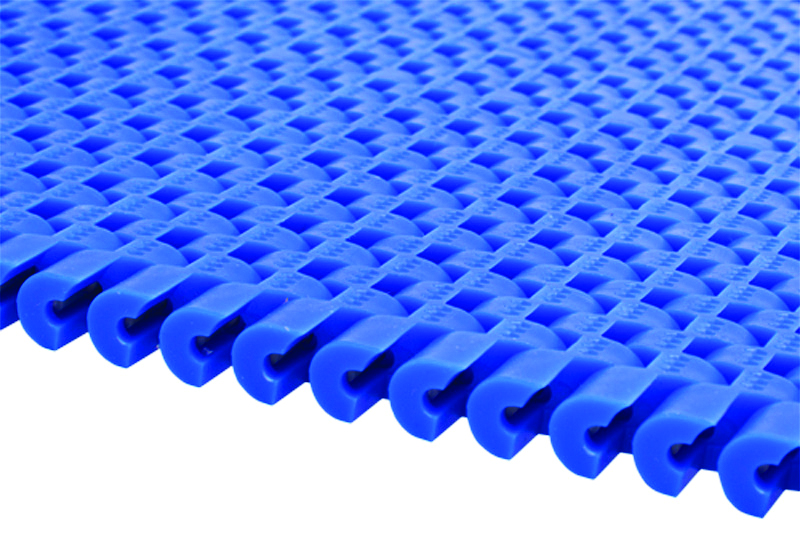

12mm Pitch Belt Diamond Top

Radius and Straight Running

Product Specification

Pitch

12mm

Link Thickness

12mm

Open Area

15%

Drive Method

Hinge Driven

Surface Area

Flush Grid

Travel

Directional Only

Link Layout

Bricklayed

Belt Data

Belt Material

Temperature Range °C

Belt Weight M2

Minimum Inside Radius

Acetal

-40°C to 93.6°C

8.8kg

2.2 x belt width

Rods

Diameter

Rod Retention

Glass Filled Nylon

4mm Ø

Offset Hole

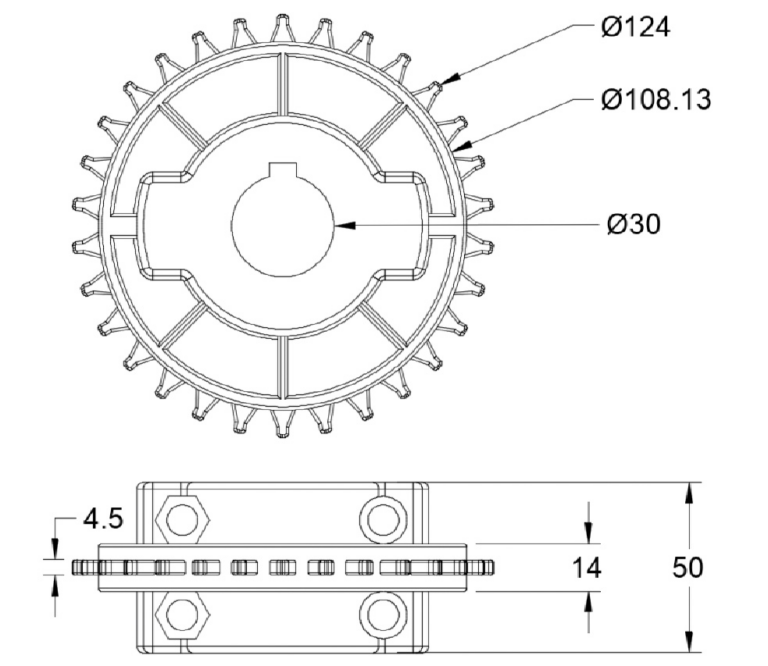

Sprockets

Material

Number of teeth

Bore with keyway

Hub width

Hub diameter

Glass Filled Nylon

30

30mm

50.6mm

108.13mm

How to calculate the nearest available width

Smallest width available – 85mm
Increments -17mm (one link)
Example – 85mm + 17 + 17 = 119mm

Below table is purely a guide and is spaced +- 100mm apart to help with machine build

Weights and Sprockets

Width (mm)

Weight per mm

Total weight per width -kg

Total weight in LB

Min drive Sprockets per width of belt

Carryway

119

0.0088

1.118

2.464

2

2

255

0.0088

2.235

4.928

3

2

374

0.0088

3.353

7.392

3

3

510

0.0088

4.470

9.855

5

4

629

0.0088

5.588

12.319

7

4

765

0.0088

6.706

14.783

7

5

884

0.0088

7.823

17.247

9

6

1020

0.0088

8.941

19.711

11

7

1139

0.0088

10.058

22.175

11

8

1275

0.0088

11.176

24.639

13

9
